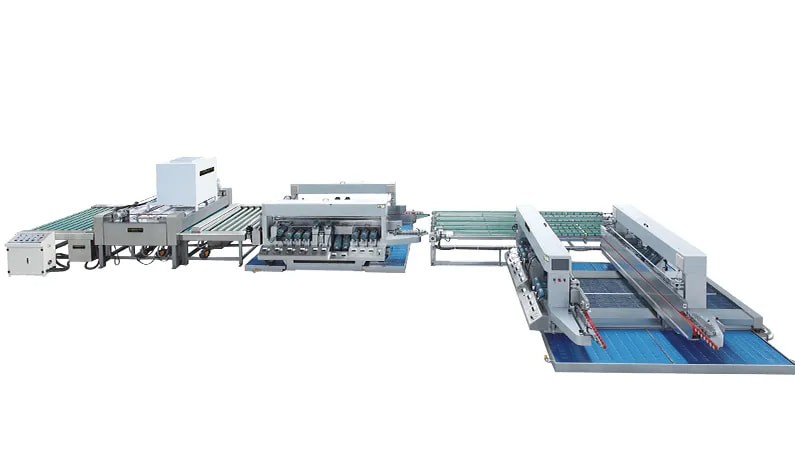

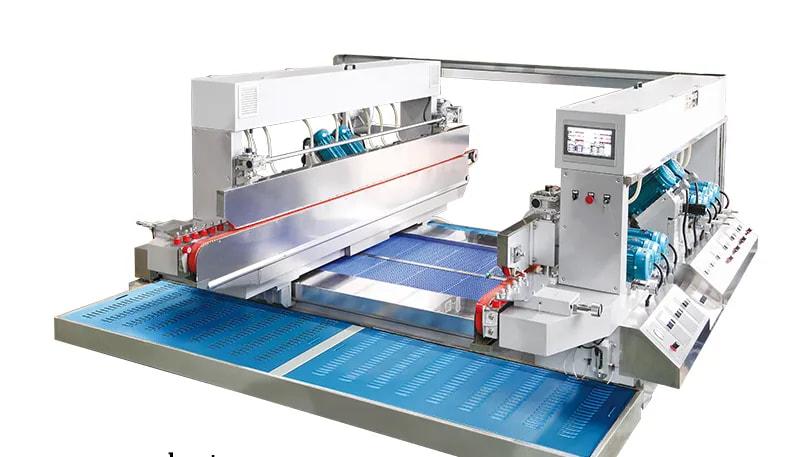

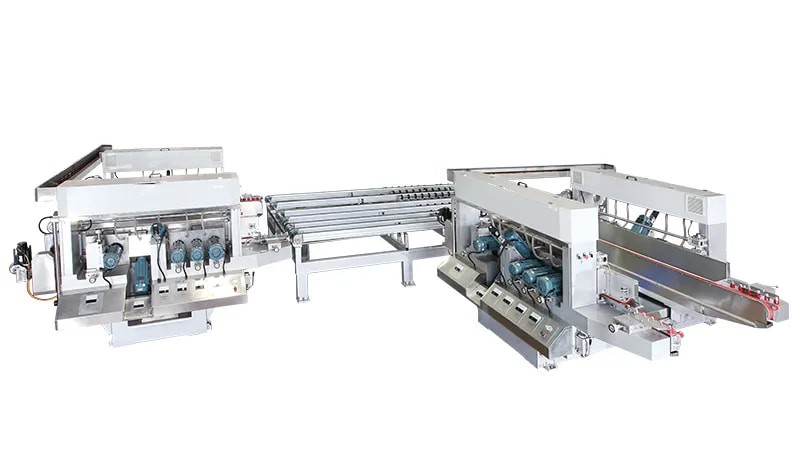

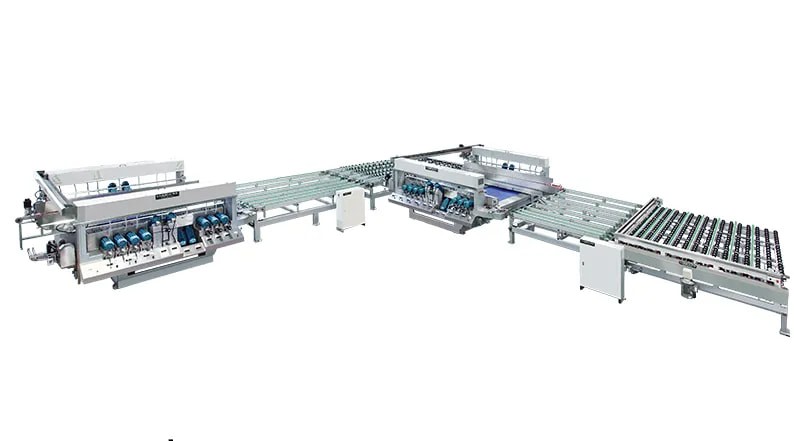

Automatic Dual Straight Edge Machine Production Line
Glass Grinding Machine
Category: Grinding Machine
Product description
Automatic Dual Straight Edge Machine Production Line, suitable for processing high-end furniture, aquariums, display cabinets, shower rooms, construction, doors, windows, and glass in various processing fields. It can be connected with upper and lower plate tables and washing machines to achieve an unmanned automated production line, significantly reducing costs.
| Product Name | Automatic Dual Straight Edge Machine Production Line |
|---|---|
| Brand Name | Shkawell |
| Number of grinding heads | 24-28 |
| Processing Size | 350mm-2500mm,350mm-4500mm |
| Glass Chamfer width | 1~3mm |
| Glass Parallel tolerance | ±0.2mm/m |
| Width positioning tolerance | ±0.1mm/m² |
| Processing Glass thickness | 3~25mm |
| Power Supply | 380v/50Hz/3P |
| Opening and closing speed | 10m/min |
| Glass Transmission speed | 0-20m/min |
| Glass Chamfer width tolerance | ±0.2mm/m |
| Glass Diagonal tolerance | ±0.5mm/m² |
| Maximum Grinding of bottom edge | 1-6mm |
| Pneumatic Working pressure | 0.6~0.8MPa |
| Total power | 73KW |
